04 · Water heating
Electric Water Heaters
Reliable storage water heaters for residential and light commercial supply.
Overview
What it does
Flow Dynamics supplies electric water heaters for residential and commercial projects across the UAE. Storage electric water heaters are the workhorse of domestic and small-commercial hot water supply in the Gulf. The range covers vertical and horizontal wall-mount tanks from 10 to 300 litres, floor-standing models to 1,000 litres, and under-sink point-of-use units. All tanks use glass-lined or enamel-coated steel with a magnesium sacrificial anode for long service life in hard, salty Gulf water, and a high-limit safety thermostat backed by a pressure-temperature relief valve.
How it works
The working principle
Cold water enters the tank through a dip tube that discharges at the bottom. A calibrated thermostat switches an immersion heating element on when temperature falls below setpoint. The element heats the water, which rises by convection and stratifies, hot water accumulates at the top, where the outlet pipe draws it off. A magnesium anode rod inside the tank corrodes preferentially to the steel, protecting the vessel wall. Modern units add ECO thermostat modes, smart timers, and Wi-Fi control for off-peak electricity use.
Applications
Where it's used
Typical installations across the UAE and wider Gulf include:
- Villa and apartment domestic hot water
- Hotel guest rooms and small restaurants
- Salons, spas, and beauty centres
- Mosque ablution rooms
- Under-sink point of use in offices and clinics
- Labour accommodation and staff housing
Specifications
Technical data
Indicative ranges, exact specifications are confirmed per project on selection.
| Capacity range | 10 – 1,000 L |
|---|---|
| Mounting | Wall, floor, under-sink |
| Tank protection | Glass-lined + magnesium anode |
| Element power | 1.5 – 6 kW |
| Max temperature | 75 °C with high-limit cutout |
| Safety | T&P relief valve included |
ZENITH · UAE Flow Dynamics supplies equipment from this manufacturer. We do not act as authorised representative unless explicitly stated in a specific project supply agreement. Component teardown

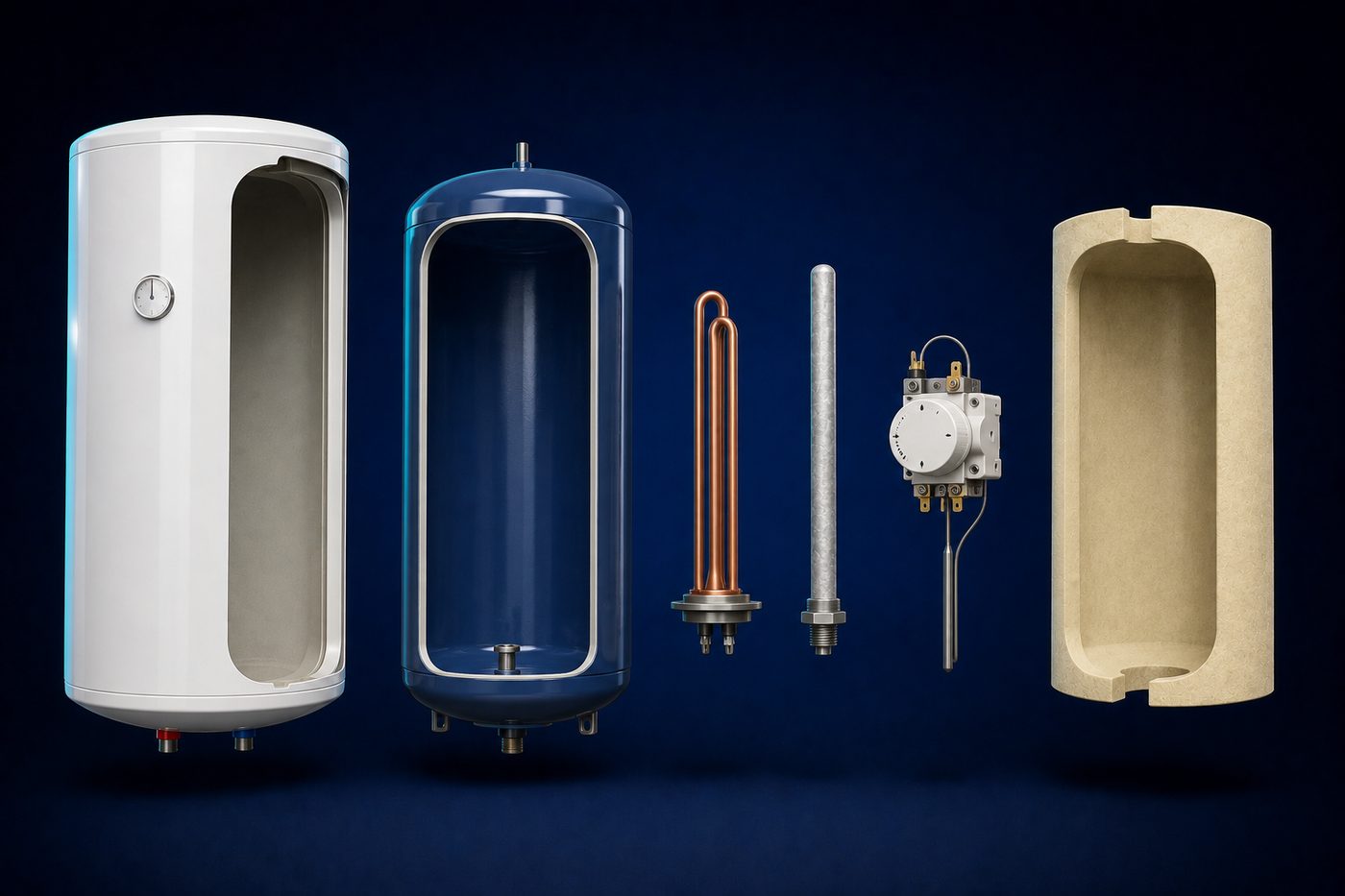

Inside the machine.
Every component, taken apart. Select a marker to identify each part, or open the full teardown.
FAQ
Common questions
Why does Gulf water need anode protection?
UAE water is hard and often saline, which attacks tank steel. A magnesium sacrificial anode corrodes preferentially to the vessel wall; combined with glass lining it is what delivers long tank life here.
Can you supply water heaters at development scale?
Yes. We have supplied domestic electric water heaters across full community developments, including a 410-villa project in Al Dhafra, with staged delivery matched to the fit-out programme.
What capacity heater does each unit type need?
Send us the application, airflow or demand figures, and any consultant specification. Our engineers reply with a defended selection, datasheets and submittal documentation. Sizing is always confirmed by an engineer, never by a web calculator.
