FLOW02 · Ventilation & AC
Textile Fabric Ducts
Lightweight, hygienic, engineered fabric air-distribution systems.
Manufacturer
FabricAir
Where it is used
- 01Food and beverage production plants
- 02Gyms, swimming pools, and fitness studios
- 03Schools, nurseries, and lecture halls
- 04Pharmaceutical and cleanroom areas
- 05Retail stores and showrooms
- 06Cold storage and logistics warehouses
Read the product brief
Flow Dynamics supplies textile fabric duct systems across the UAE. Fabric ducts replace heavy galvanised sheet metal with a lightweight, washable, colour-matched polyester textile engineered for uniform air distribution. The fabric is porous or perforated to release air along the entire length of the duct, giving an even, draught-free supply that metal diffusers cannot match. Fabric ducting is the standard specification for food factories, gyms, schools, and pool halls, anywhere hygiene, noise, or visual design matters.
How it works
Working principle

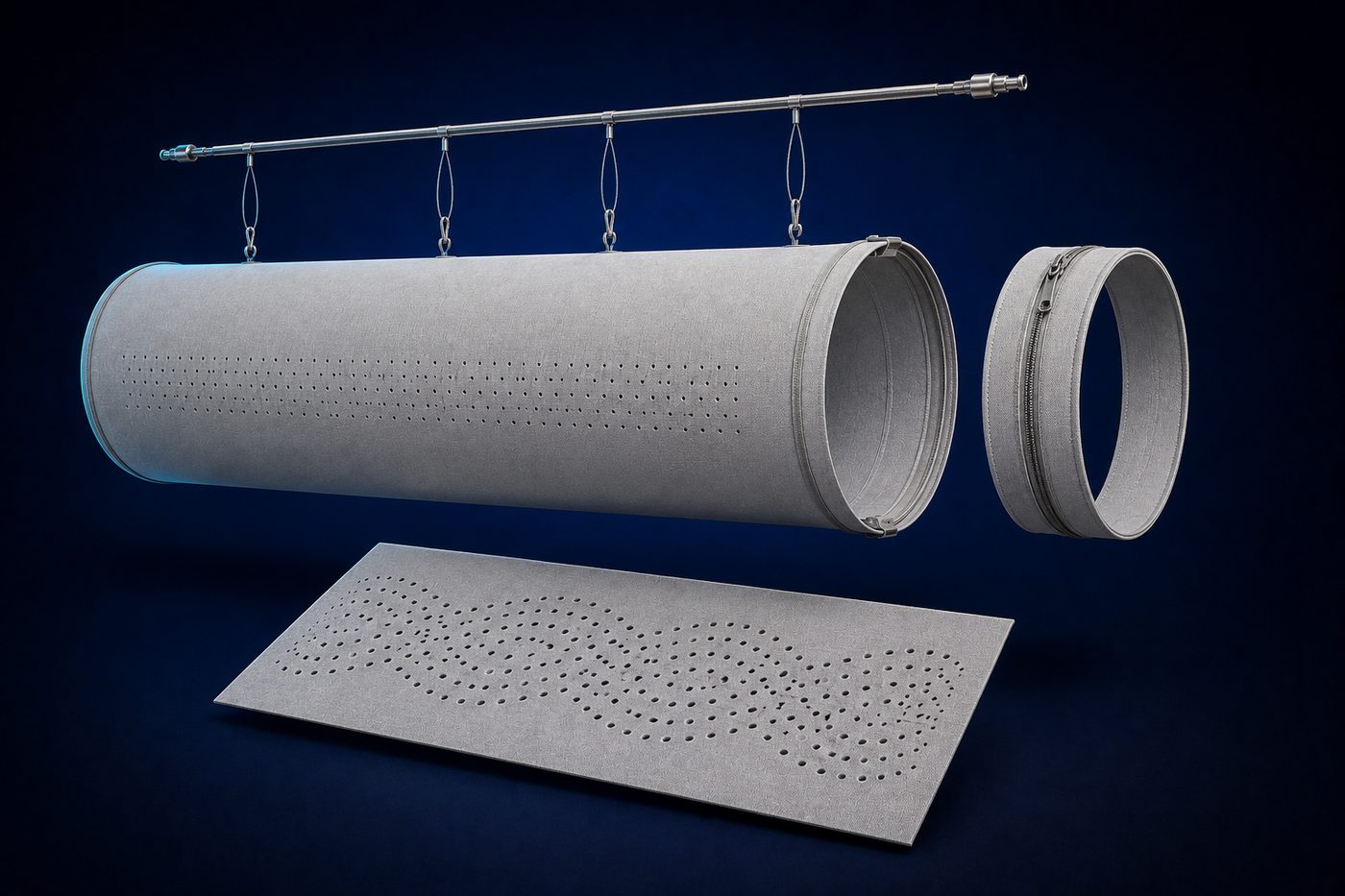

The duct itself acts as the diffuser. Engineered perforation patterns, porous micro-weaves, and nozzle inserts are arranged along the duct length so air is released with a precisely designed jet pattern, from gentle throughout-the-room dispersion to targeted high-throw nozzles aimed at a specific workstation. Fabric inflates under pressure when the fan starts and deflates when it stops. The textile can be removed by unzipping, machine-washed, and re-installed in under an hour, far easier than cleaning a metal duct network.
What the team needs to review
These are indicative ranges from the current product record. Exact specifications are confirmed per project during selection.
01Operating duty
Share the required airflow or capacity, operating condition and expected schedule.
02Site arrangement
Provide the available drawings, connection points, installation position and service clearances.
03Project requirements
Include the consultant specification, material, control and approval requirements that apply.
04Quantity and delivery
Provide the project location, quantity and required delivery date.
Technical specifications
These are indicative ranges from the current product record. Exact specifications are confirmed per project during selection.
| Material | Engineered polyester textile |
|---|---|
| Distribution modes | Porous / perforated / nozzle |
| Diameters | 160 – 2,500 mm |
| Fire rating | B-s1,d0 per EN 13501-1 |
| Cleaning | Machine-washable 60 °C |
| Antimicrobial | Optional treated fabric |
Plan your enquiry
Start with the project information available.
Share the application, duty or airflow figures, drawings and any consultant specification available. The team will confirm what is needed to complete selection.
Common questions
Common questions
01Why choose fabric duct over metal?
Uniform draught-free distribution along the full duct length, much lower weight, lower installed cost, quiet operation, and hygiene: the textile unzips, machine-washes at 60 °C and reinstalls in under an hour.
02Is fabric duct fire rated?
The engineered textile carries a B-s1,d0 classification per EN 13501-1, and we provide the certification documents with the submittal pack.
03How is a fabric duct system designed for my space?
Send the required duty, site conditions, equipment schedule and any available drawings or consultant specification. We use these to prepare an equipment selection and the supporting technical documents.
