Venturi Valves & Controls

Pressure-independent airflow control for critical environments.

Request technical review

Venturi Valves & Controls — For indicative purposes only.

Response timeUnder 1 second

Accuracy±5% of commanded flow

Pressure rangePressure-independent over 150–750 Pa

Manufacturers

Antec Controls
E.H. Price

Applications

Where it is used

01Fume hood supply and exhaust control
02Biosafety cabinet and isolator exhaust
03Cleanroom pressure cascade control
04Hospital isolation and airborne-infection rooms
05Animal research facility caging exhaust
06Nuclear and radiochemistry lab ventilation

Read the product brief

Flow Dynamics supplies venturi valves and airflow controls for UAE laboratory and controlled-environment projects. Selection considers the required flow range, available differential pressure, response requirements and exhaust chemistry. The valve, actuator and controls are coordinated with the room and fume-hood operating sequence.

How it works

Working principle

A mechanically pressure-independent venturi valve uses a calibrated cone and spring to compensate for duct-pressure changes within its rated operating range. The control system sets the required airflow. Valve size, response time, materials and control interfaces are selected for the laboratory duty.

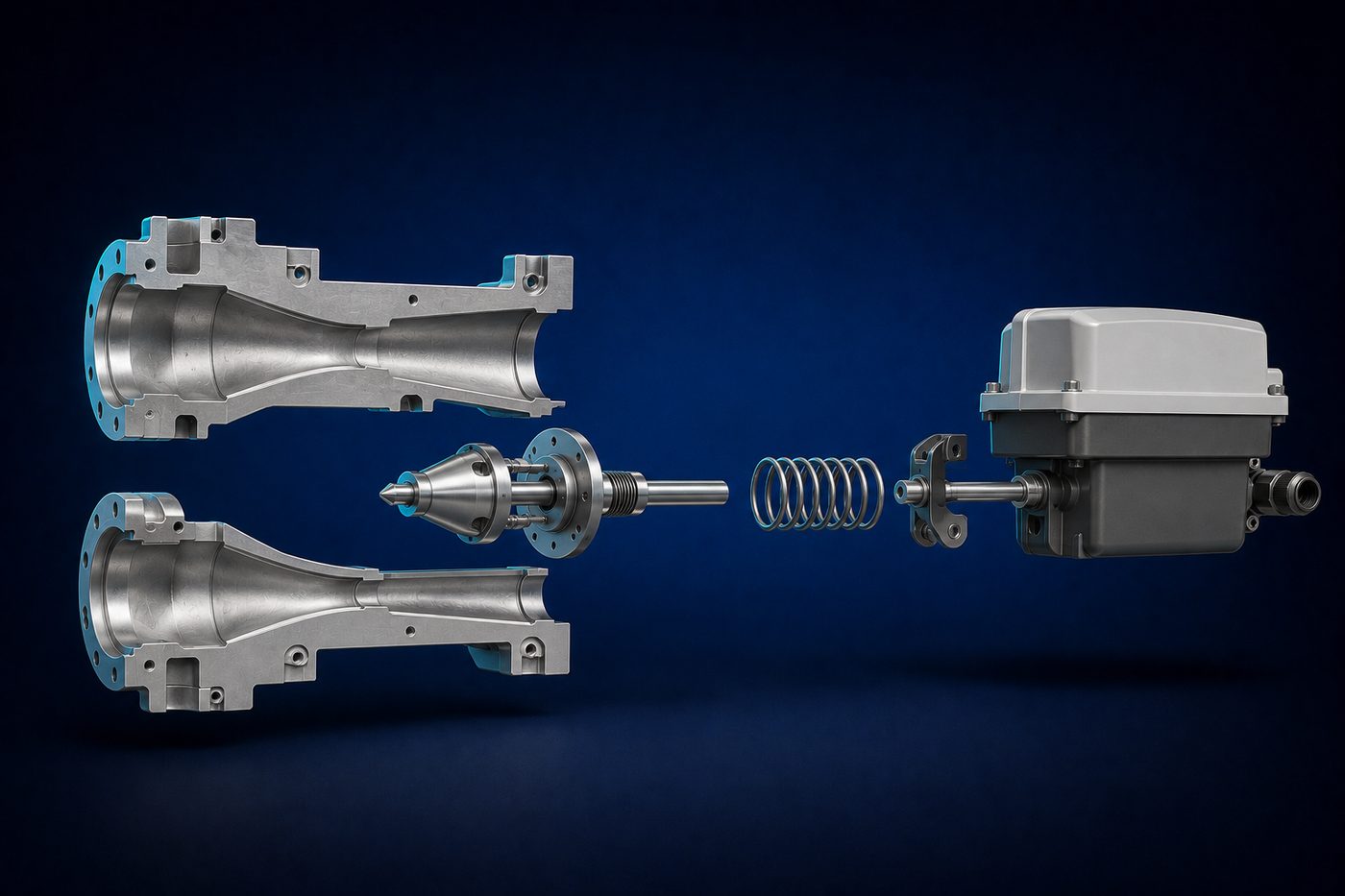

Exploded component view of Venturi Valves & Controls

What the team needs to review

These are indicative ranges from the current product record. Exact specifications are confirmed per project during selection.

01Operating duty
Share the required airflow or capacity, operating condition and expected schedule.
02Site arrangement
Provide the available drawings, connection points, installation position and service clearances.
03Project requirements
Include the consultant specification, material, control and approval requirements that apply.
04Quantity and delivery
Provide the project location, quantity and required delivery date.

Technical specifications

These are indicative ranges from the current product record. Exact specifications are confirmed per project during selection.

Response time	Under 1 second
Accuracy	±5% of commanded flow
Pressure range	Pressure-independent over 150–750 Pa
Flow range	35 – 3,400 m³/h per valve
Liner options	Phenolic, PTFE, stainless steel
Control signal	0–10V, BACnet, Modbus

Plan your enquiry

Start with the project information available.

Share the application, duty or airflow figures, drawings and any consultant specification available. The team will confirm what is needed to complete selection.

Common questions

01When is a venturi valve suitable for laboratory airflow control?

Where its rated flow and pressure range, response characteristics and material construction meet the laboratory specification. Check the complete control sequence and commissioning requirements alongside the valve selection.

02Can a valve handle corrosive exhaust?

The body, lining, seals and other exposed materials must be checked against the exhaust chemistry and manufacturer’s compatibility guidance.

03What information is needed for selection?

Send the required duty, site conditions, equipment schedule and any available drawings or consultant specification. We use these to prepare an equipment selection and the supporting technical documents.
